SMT is a high-performance surface mount RJ45 connector specially designed for modern network communication., it builds an efficient and stable bridge between PCB and Network World. Its functions are mainly reflected in the following three points: first, provide high-speed network connection (up to 1Gbps) for equipment, and support reliable data transmission; Second, realize miniaturization and high-density integration through SMT technology, adapt to the trend of light and thin modern electronic equipment; Third, built-in shielding and filtering to ensure signal integrity and improve anti-interference capability. This case mainly shares the test cases of SMT connector weld leg flatness, spacing and grounding sheet flatness.

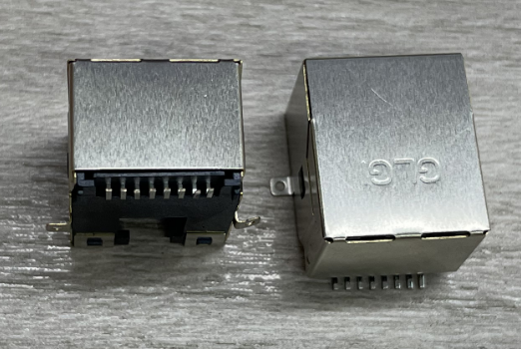

Product diagram:

detection effect diagram:

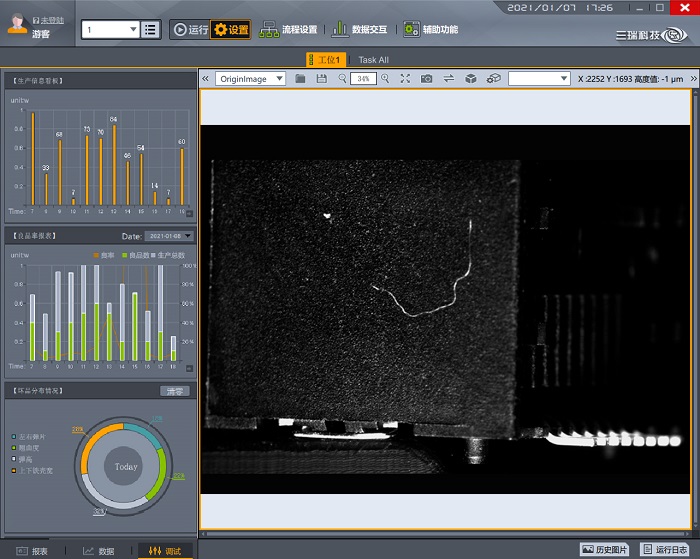

flatness detection effect diagram of grounding sheet

detection effect diagram of shrapnel up and down

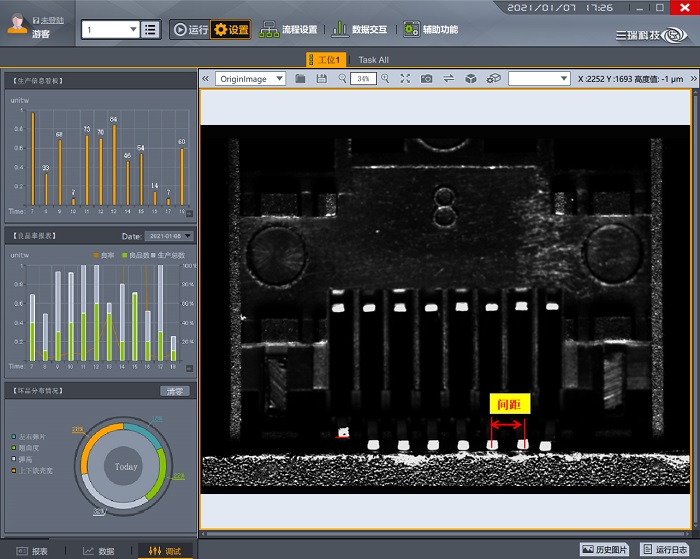

welding foot flatness detection effect diagram

project Introduction

product Name: SMT connector;

test content: the flatness and spacing of welding feet; The flatness of grounding sheet; The shrapnel is upturned and collapsed;

scanning Time: 300ms for a single photo;

dongguan sanrui Automation Technology Co., Ltd., established in March 2010, focuses on the research and development, production and sales of software and systems such as machine vision inspection, identification, positioning, three-dimensional image processing, precise motion control, etc. The company deeply engages in machine vision algorithms, integrates artificial intelligence algorithms and technologies such as deep learning, and professionally provides customers with a full set of machine vision solutions.

At present, the company's products mainly include machine vision inspection system, machine vision positioning system, 3D measurement system, precision motion control system and machine vision inspection equipment, which are widely used in 3C electronics, new energy, semiconductor, automotive Electronics, robots, industrial automation and other fields provide machine vision detection, machine vision positioning, three-dimensional image measurement, precise motion control and other applications for various industrial scenes. After 15 years of development, the company has accumulated rich industry experience, and with Lixun precision, Changying Precision, Lingyi Zhizao amfino, more than 100 well-known enterprises at home and abroad, such as electric connection technology, have established long-term cooperative relations.
